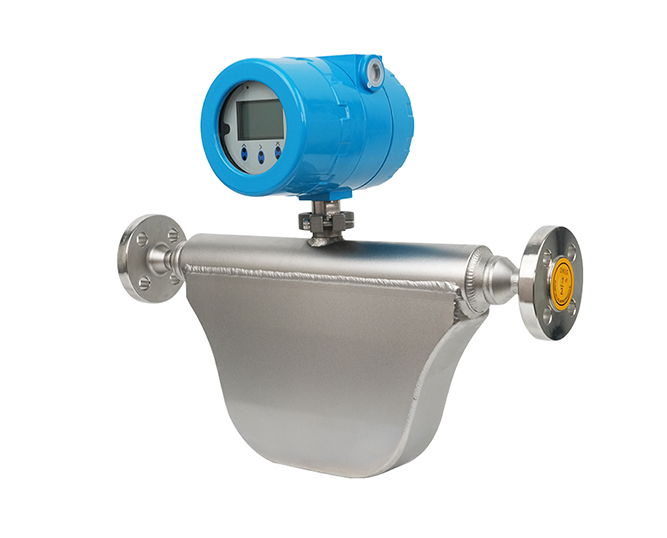

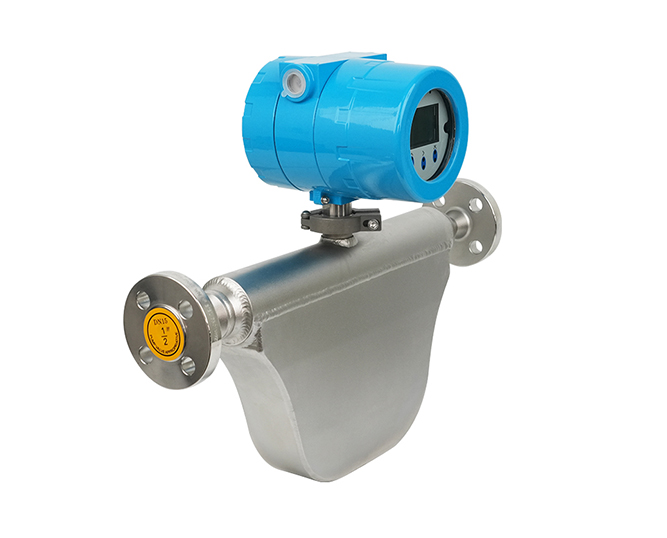

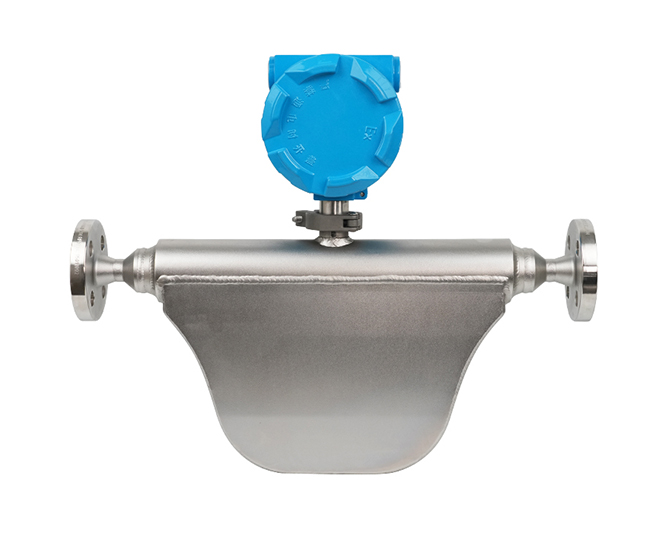

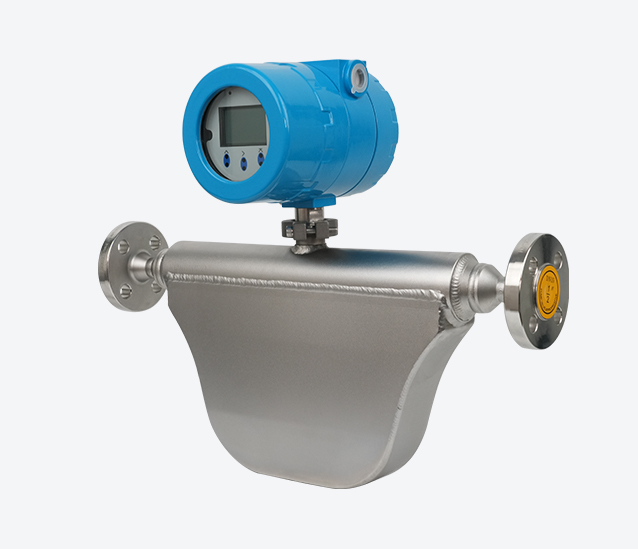

A Coriolis mass flow meter is one of the most advanced and accurate instruments for measuring mass flow directly. By utilizing the Coriolis effect, the meter can determine the mass flow rate of liquids, gases, and slurries with exceptional precision. It also provides density and temperature measurements simultaneously, making it ideal for critical industrial processes where accuracy and reliability are essential.
High Accuracy::
Typical measurement accuracy of ±0.1%~0.2% of rate.Robust Design:
Resistant to pressure, vibration, and harsh environments; available in various materials like stainless steel, Hastelloy, etc.Multi-Parameter Output:
Provides mass flow, density, temperature, and totalizer values in one device.Wide Application Range:
Suitable for liquids, gases, and high-viscosity slurries.Multiple Communication Options:
4-20 mA, HART, Modbus for easy system integration.
Crude oil, LNG, LPG, refined products.
Acids, solvents, polymers, and chemical feedstocks.

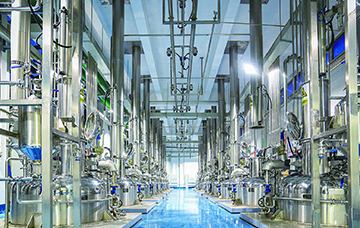

Syrups, dairy products, beverage ingredients.

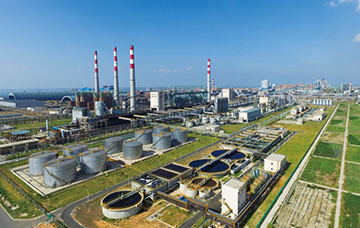

Compressed natural gas (CNG), power plant fuel monitoring.
|
OD （mm） |
flow range |
|
DN2 |
0.004 t/h -0.08t/h |
|
DN3 |
0.009 t/h -0.18 t/h |
|
DN6 |
0.048 t/h -0.96 t/h |
|
DN10 |
0.1 t/h -2.1 t/h |
|
DN15 |
0.225 t/h -4.5 t/h |
|
DN20 |
0.36 t/h-7.2 t/h |
|
DN25 |
0.6 t/h-12 t/h |
|
DN32 |
1.05 t/h-21 t/h |
|
DN40 |
1.8 t/h-36 |
|
DN50 |
3 t/h-60 t/h |
|
DN80 |
10 t/h-200 t/h |
|
DN100 |
14 t/h-280 t/h |
|
DN150 |
24 t/h-480 t/h |
|
DN200 |
45 t/h-900 t/h |
