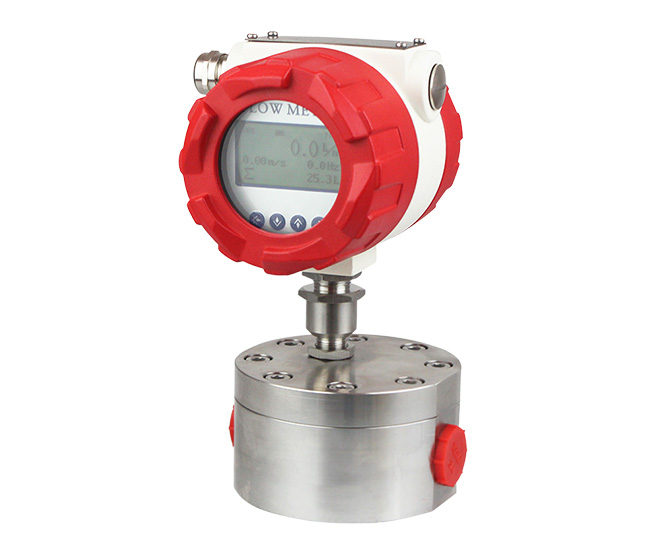

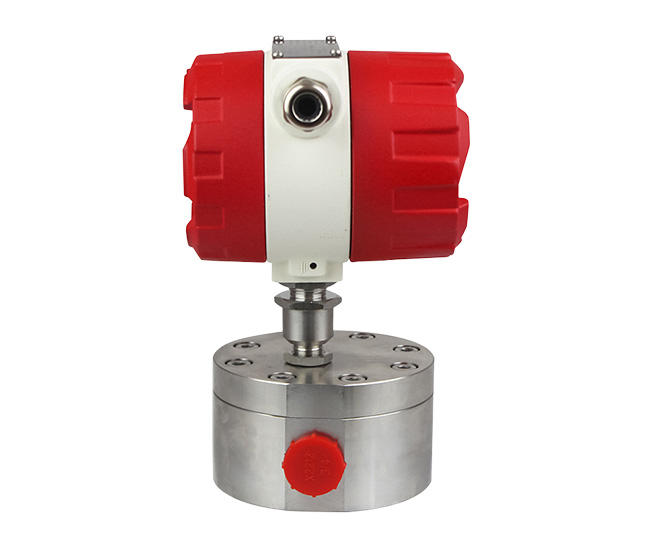

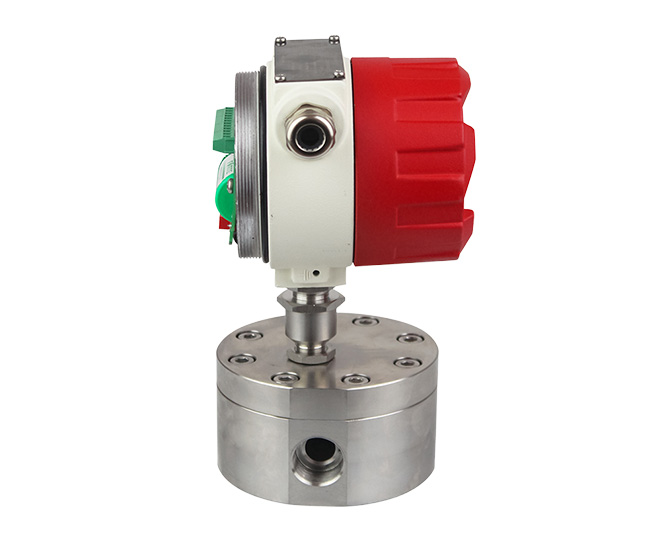

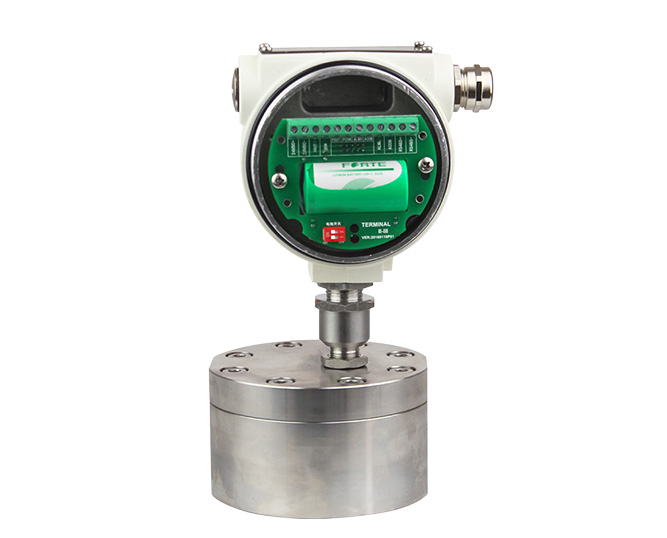

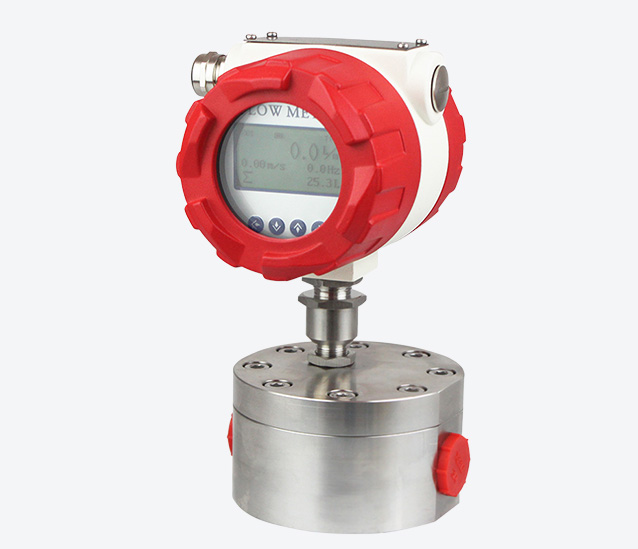

The Gear Flow Meter is a positive displacement flow meter specifically engineered for high-viscosity liquids and low-flow applications.
Its measuring chamber uses a pair of gears to trap and transfer a fixed volume of liquid with each rotation. The rotational speed is directly proportional to the volumetric flow rate, ensuring high accuracy independent of flow turbulence or viscosity fluctuations.
It is ideal for applications where heavy oil, polyvinyl alcohol (PVA), resins, adhesives, and other thick fluids need precise metering — even at very low flow rates.
Precision:
±0.5% typical accuracyVersatility:
Works with high-viscosity and low-conductivity liquidsEnergy-efficient:
Minimal pressure dropDurability:
Resistant to wear; options for stainless steel or special alloysEasy integration:
Compact design, supports automation
Heavy oil, bitumen, lubricants
Resin, polyvinyl alcohol, polymer fluids
Syrups, molasses, edible oils
Adhesives, varnishes, inks
Accurate low-flow chemical dosing systems
|
Nominal diameter (DN) |
DN2 DN4 DN6 DN10 DN15 DN25 DN32 etc |
|
Accuracy |
±0.5% ±1.0% |
|
Output Signal |
4–20 mA, RS485 (Modbus RTU) |
|
Pressure |
40Mpa |
|
Power Supply |
24VDC |
|
Range ratio wide |
1：100 |
|
Connection |
Threaded, sanitary flange, ferrule |
|
Explosion-proof Option |
Ex d IIB T4 |
| Model | measuring range L/H | Max pressure Bar | Work Temperature | Accuracy | connection | |
| AL6061 | SS304/SS316 | |||||
| GF02 | 0.6-50 | 150 | 400 | -15-80℃ | +/- 0.5% +/- 1.0% | G1/4 |
| GF04 | 5-250 | 150 | 400 | -15-80℃ | G3/8 | |
| GF06 | 10-500 | 150 | 400 | -15-80℃ | G1/2 | |
| GF10 | 50-1200 | 150 | 400 | -15-80℃ | G1/2 | |
| GF15 | 200-3000 | 150 | 400 | -15-80℃ | G3/4 | |
| GF25 | 1000-12000 | 150 | 400 | -15-80℃ | G1 | |
| GF32 | 2000-20000 | 150 | 400 | -15-80℃ | G1-1/4 | |
