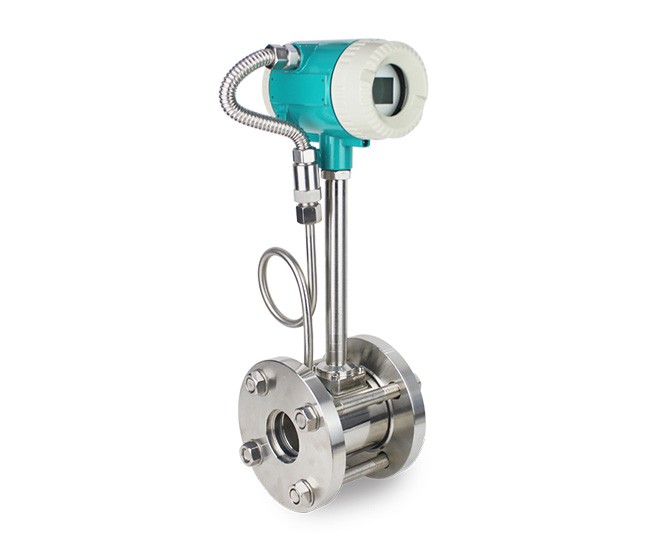

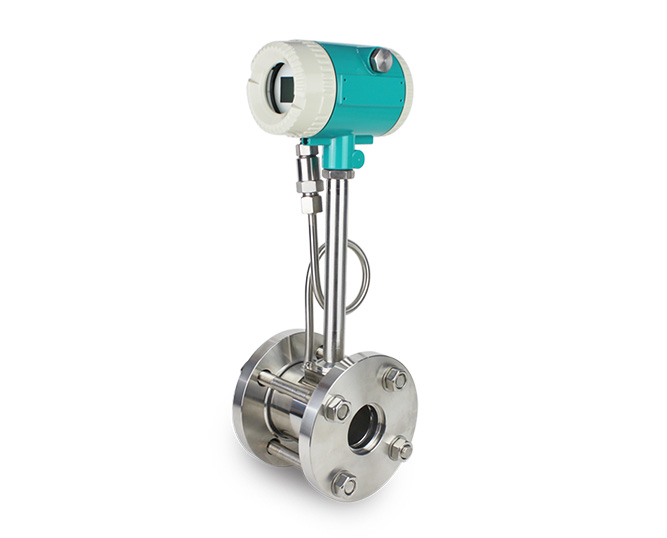

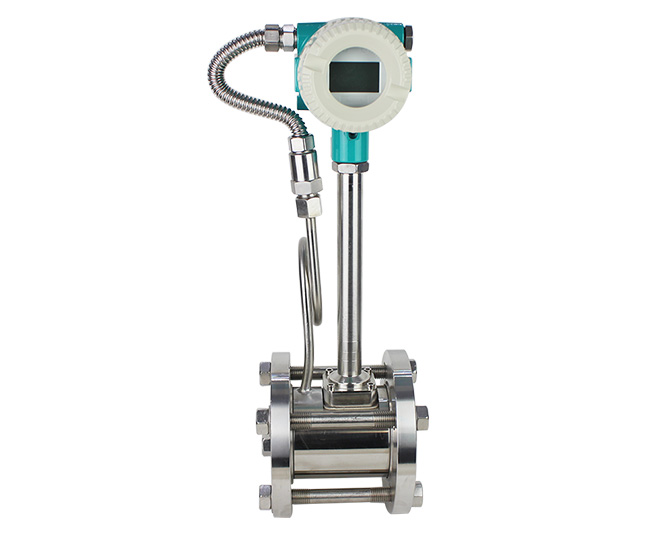

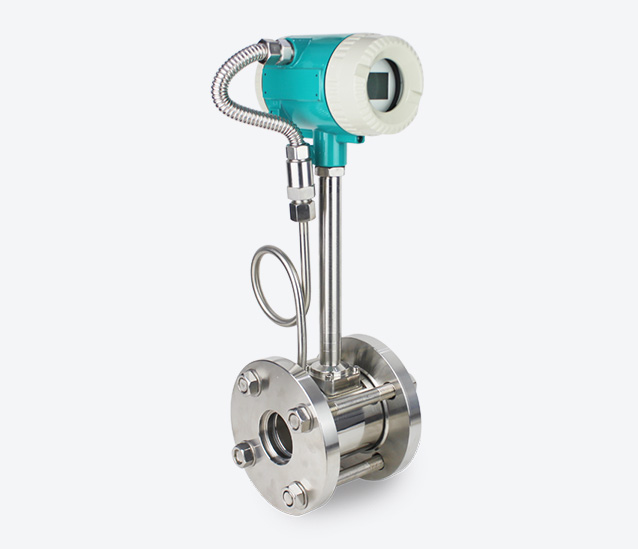

The Steam Vortex Flowmeter is a specialized flow measurement device optimized for steam applications. Based on the vortex shedding principle, it accurately measures both saturated and superheated steam. By integrating temperature and pressure compensation, the meter directly outputs mass flow or standard volume flow, ensuring precise and reliable steam measurement under varying process conditions.
This type of vortex flowmeter is widely used in boilers, power plants, heating networks, and industries where steam is a critical energy source.
Dedicated for steam
optimized for saturated and superheated steamIntegrated temperature & pressure compensation
automatic density correctionDirect mass flow output
suitable for energy management and cost allocationHigh reliability
no moving parts, long service lifeFlexible installation
available in integral and remote types
industrial boilers, heating stations
steam turbines, thermal power generation
process steam supply and distribution
sterilization, cooking, drying with steam
steam pipelines for central heating systems
|
Nominal diameter (DN) |
DN25 ~ DN1500 (≧300mm insert type structure) |
|
Accuracy |
±1.5% of reading (steam) |
|
Medium |
Saturated steam, superheated steam |
|
Flow range |
2~ 120 m/s (depending on pipe size & medium) |
|
Pressure |
PN16, PN25, PN40 (higher ratings on request) |
|
Medium temperature |
40°C ~ 350°C (up to +420℃ for high-temp steam type) |
|
Linearity |
≦±1.5% |
|
Repeatability |
≦0.5%, ≦1.0% |
|
Output signal |
4-20 mA, Pulse, RS485/Modbus |
|
Communication |
RS485, HART, M-bus |
|
Power supply |
24V DC or lithium battery |
|
Display |
Instantaneous flow, totalized flow, temperature, pressure |
|
Installation |
flange clamp type (25mm ~ 300mm) Insert type (350 mm ~ 1500 mm) |
|
Protection grade |
IP65, IP67 |
|
Display |
Instantaneous flow, totalized flow |
|
Explosion proof type |
intrinsic safety type / explosion proof type |
|
Explosion proof grade |
iaII CT6, dIIBT4 |
|
Ambient |
temperature: -40°C ~ 55°C, humidity: 5% -90 % |
