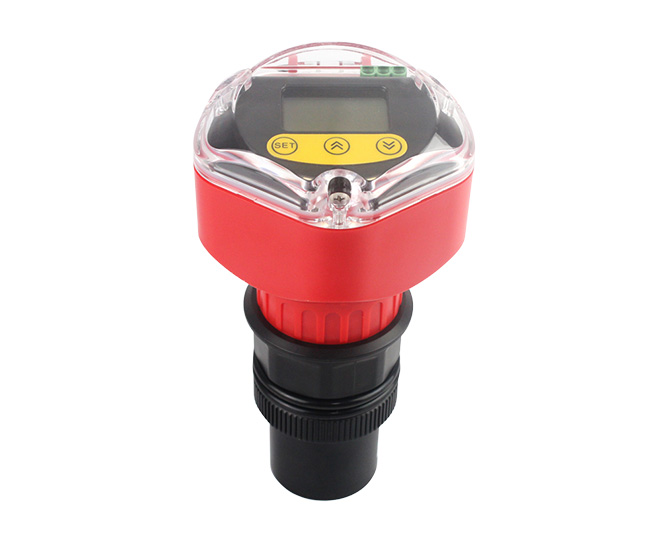

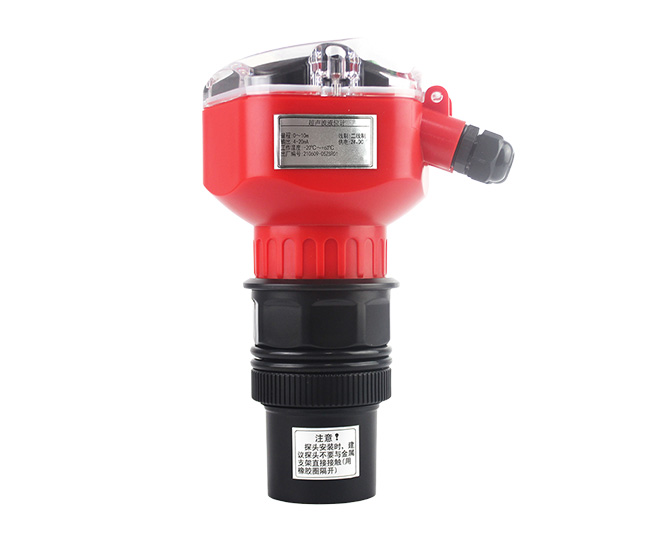

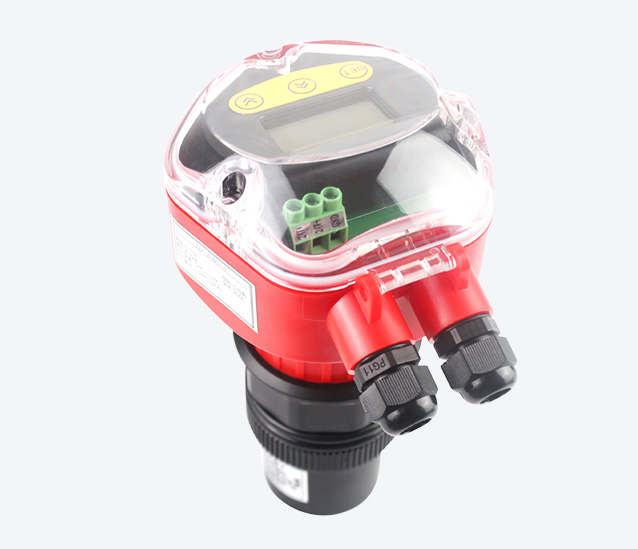

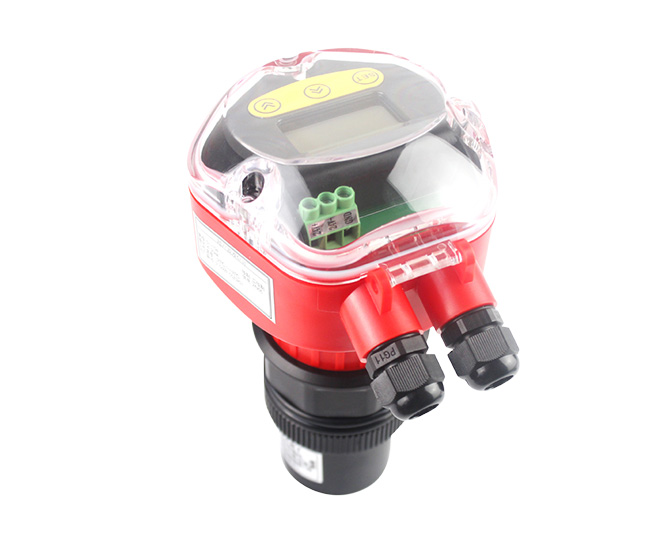

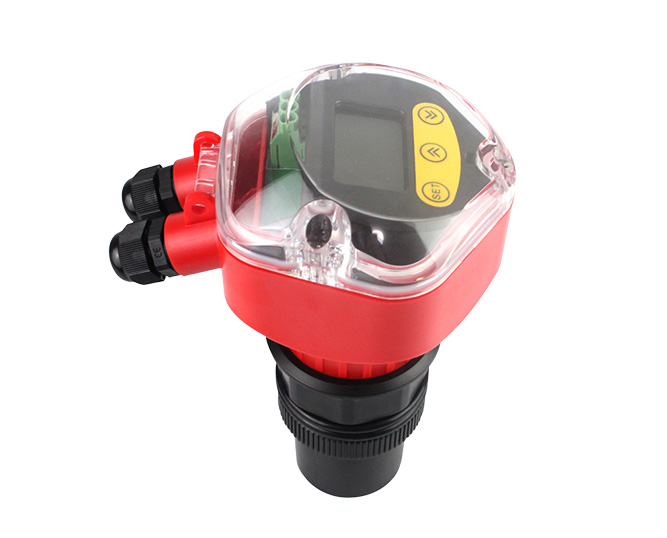

The Integrated Ultrasonic Level Meter is a non-contact liquid level measurement device that integrates the sensor and transmitter into one compact unit. It uses ultrasonic pulses to measure the time between emission and echo, accurately determining the liquid level without contact with the medium.
This design is ideal for applications involving water, wastewater, corrosive chemicals, and other challenging fluids. It is widely used in industries where hygiene, corrosion resistance, and safety are essential.
Accurate & Reliable:
High measurement accuracy ensures process stabilitySafe & Durable:
Non-contact design reduces wear and corrosionEasy Installation:
Compact, all-in-one design; no need for complex wiringCost Saving:
Low maintenance, long service lifeVersatile:
Suitable for corrosive and hygienic environments
Sewage treatment plants, water reservoirs, pumping stations
Acid/alkali storage tanks, corrosive liquids
Hygiene-sensitive tanks, brewing, beverage storage
Irrigation channels, water tanks
Cooling water systems, open channels
|
Measuring Range |
5m / 8m / 10m / 12m / 15m |
|
Accuracy |
±0.2% FS |
|
Output Signal |
4–20 mA, HART,RS485 (Modbus RTU) |
|
Blind zone |
＜0.4-0.6m（different for range） |
|
Power Supply |
24VDC or AC220V |
|
Housing Material |
ABS |
|
Protection Class |
IP65 / IP67 |
|
Display |
OLED |
|
Installation |
Top mounted, non-contact |
|
Electrical interface |
M20X1.5 |
