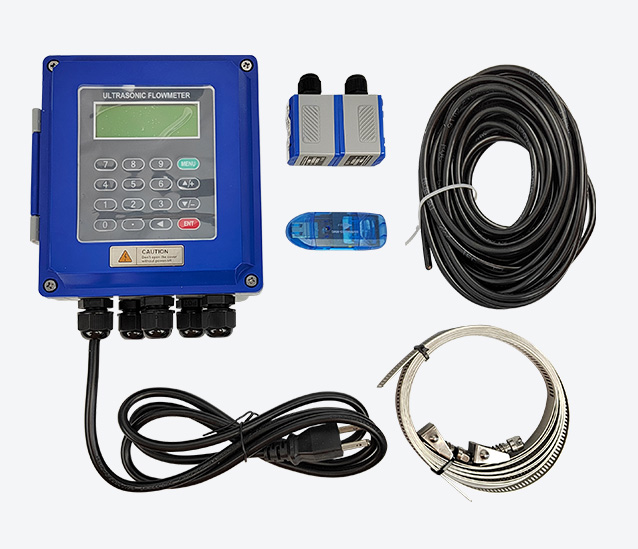

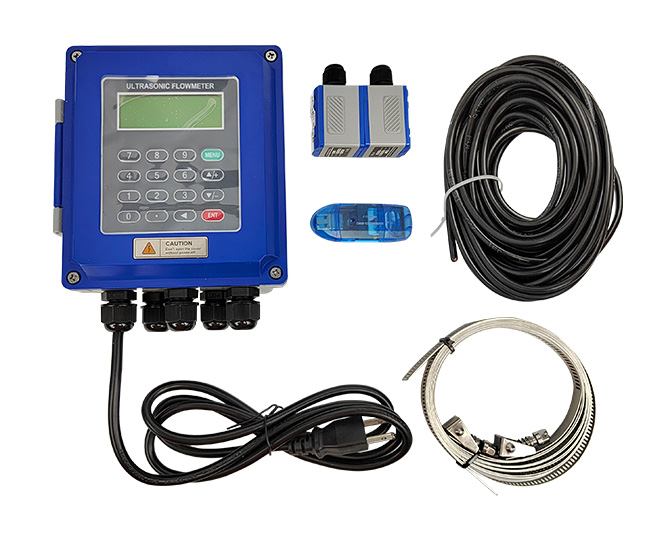

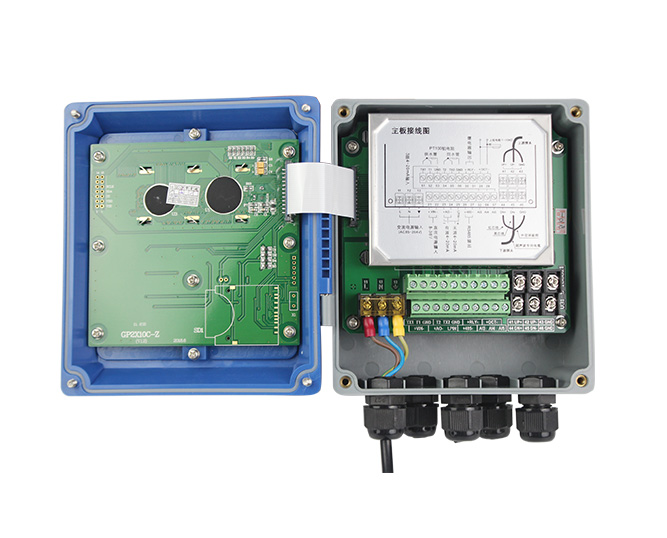

The Wall-Mount Ultrasonic Flowmeter is a fixed-installation, non-invasive flow measurement solution designed for continuous monitoring of liquid flow in closed pipelines. Using ultrasonic transit-time technology, it calculates flow velocity by detecting the time difference between ultrasonic signals transmitted upstream and downstream.

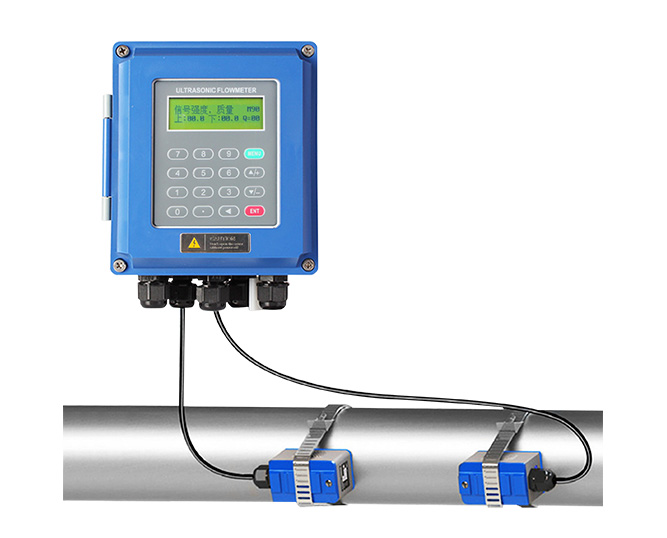

The clamp-on design allows installation without cutting pipes or stopping the process, ensuring zero pressure loss and no risk of leakage. It is ideal for long-term monitoring and integration into industrial control systems.
Non-Invasive Clamp-On Design: No pipe modification, zero leakage risk
High Accuracy & Repeatability:
±1.0% accuracy, ±0.2% repeatabilityLong-Term Continuous Monitoring:
Ideal for permanent industrial installationsMultiple Output & Communication Options:
4-20mA, RS485/Modbus, relay outputsWide Pipe Size Range:
Supports DN15 to DN6000 with interchangeable transducersNo Pressure Drop:
Does not interfere with fluid or process integrityFlexible Installation:

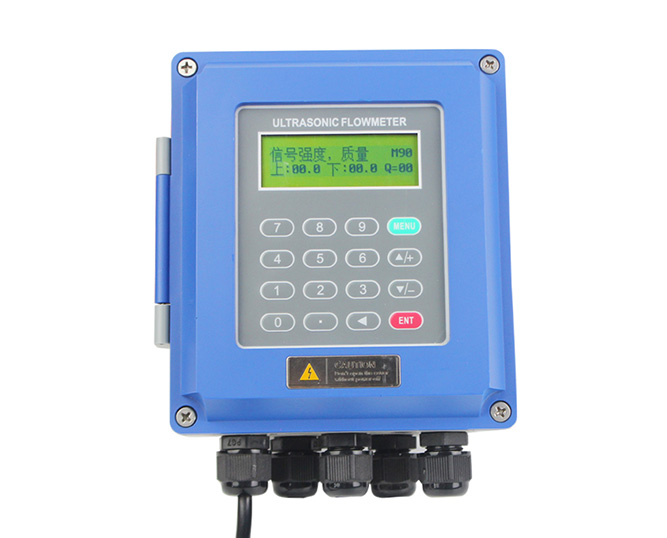

Wall-mounted housing with clear LCD display and keypadDurable Housing:
IP65/IP67 protection for harsh environments

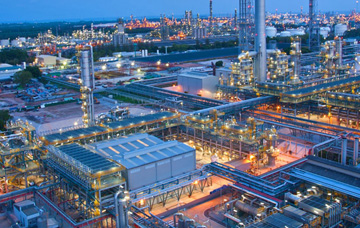

Municipal water supply, distribution networks, and treatment plants
Chilled water, cooling, and heating circuits
Process liquid flow measurement and energy monitoring
Hygienic flow monitoring of non-corrosive liquids
Flow tracking and consumption analysis
| Flow transducer | Model | measuring range | Temperature |
| Clamp on | TS-2(small) | DN25-DN100 | -30°C~90°C |
| TM-1(medium) | DN50-DN700 | ||
| TL-1(large) | DN300-DN6000 | ||
| High temp Clamp on | TS-2-HT(small) | DN25-DN100 | -30°C~160°C |
| TM-1-HT(medium) | DN50-DN700 | ||
| TL-1-HT(large) | DN300-DN6000 |
| Wall-mounted ultrasonic flowmeter | Wall-mounted ultrasonic energy meter | |
| Accuracy | ±1% | ±2% |
| Tube diameter: | DN25-DN6000 | |
| Flow rate | 0-±7m/s | |
| Turbidity | 10000ppm, and the bubble content is small | |
| Medium Tep: | -30-160°C | |
| Applicable pipes | Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. | |
| Signal Output Signal input | 1 way OCT Output (pulse width 6-1000ms, default 200ms) | 1 way 4~20mA output |
| 1 way OCT output | ||
| 1 way relay output | ||
| 3 way 4~20mA input | ||
| 2 way temperature messure | ||
| Data interface | RS232 | RS485 |
| Communication protocol | MODBUS,M-BUS,HART,ETC | |
| Display | LCD display | |
| Keyboard | 16+2 Touch keyboard | |
| Data record | Built in 32MB memory | Thermal printer |
| External SD card | ||
| Power supply | Dc 8-36V or Ac 85-264V (optional) | |
