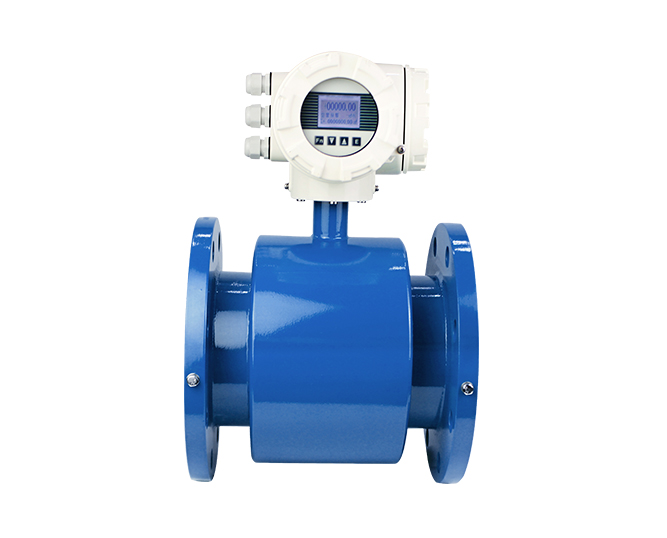

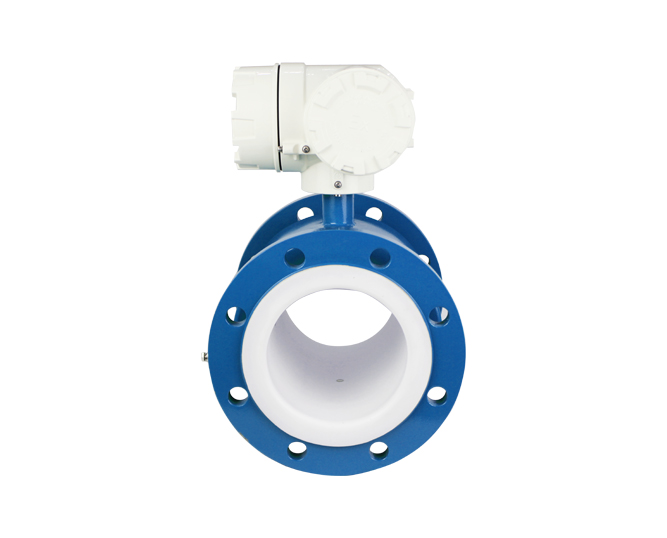

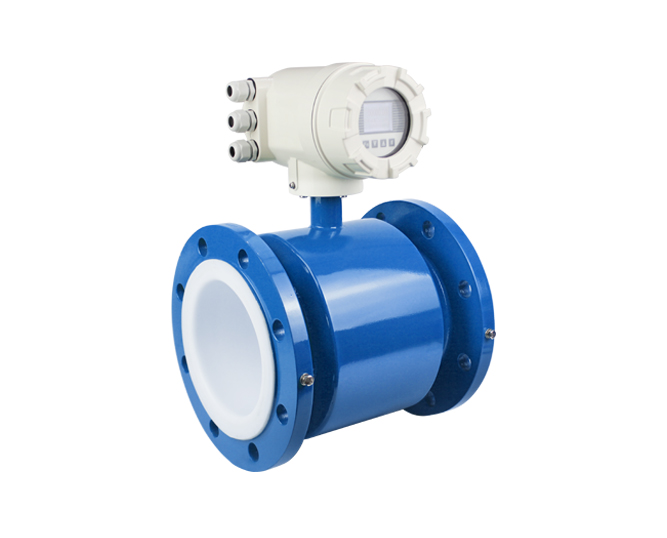

Wastewater Electromagnetic Flow Meter

The wastewater electromagnetic flow meter is designed for long-term operation in fully flooded or underground environments. With a full-sealed IP68 protection design, it ensures reliable measurement even when completely immersed in water. It is widely applied in underground pipelines, inspection wells, reservoirs, pump stations, and concealed drainage channels.

Send Message Inquiry Now

Share With:

Facebook Twitter LinkedIn Pinterest Share

Key Features

IP68 Protection
Fully waterproof, suitable for long-term submersion.
Anti-condensation Design
Ensures stable performance in humid environments.
Flexible Power Supply
Supports AC 220V, built-in battery, or solar power.
Remote Transmission
RS485, IoT options for real-time monitoring.
Low Maintenance
Fully welded sealing structure, robust and maintenance-free.

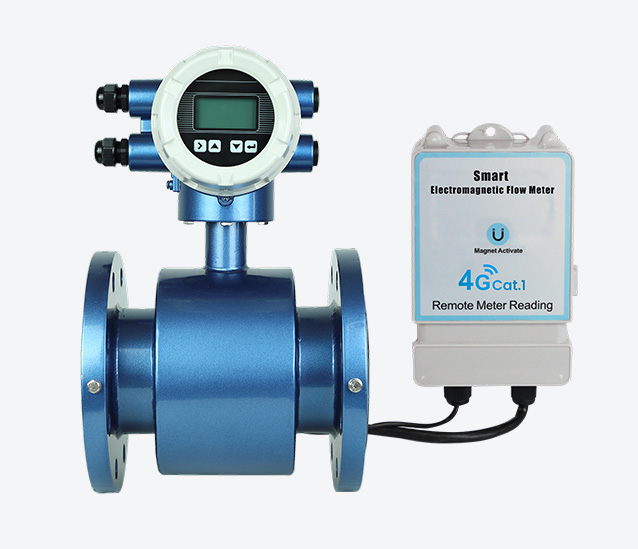

wastewater-Electromagnetic-Flow-Meter-10

Technical Advantages

Specially engineered for underground and submerged installations, resistant to flooding and condensation.
Multiple power supply modes allow operation in remote areas without mains electricity.
Supports various outputs to integrate with SCADA and AMR systems.
High reliability, suitable for unattended water supply and sewage monitoring stations.

Applications

Municipal Water Networks

Monitoring buried pipelines and underground distribution.
Irrigation Systems

Measuring flow in underground channels and farmland irrigation pipes.
Reservoirs & Pump Stations

Suitable for submerged installation at water inlets and wells.
Environmental Protection

Wastewater monitoring in underground discharge wells.

Selection Guide

Configuration	Options	Description
Diameter Range	DN50 ~ DN1200	Suitable for most municipal & irrigation systems
Liner Material	Polyurethane, Rubber, PTFE	For clean water, sewage, or corrosive liquids
Electrode Material	316L, Stainless Steel with Titanium Coating, Tantalum	Strong anti-corrosion & anti-fouling performance
Power Supply	AC220V / Battery / Solar Power	Flexible for field conditions
Output Signal	4-20mA / Pulse / RS485 / IOT	Supports remote data acquisition
Protection Level	IP68	Designed for long-term submersion
Installation	Flange / Underground special connector	Based on on-site requirements

Typical Technical Parameters

Parameter	Value	Description
Flow Velocity Range	0.05 ~ 10 m/s	Wide measurement range
Accuracy	±0.5%R	Suitable for water supply metering
Temperature Range	0℃ ~ +70℃ (custom high-temp available)	Fits water treatment needs
Pressure Rating	1.0 MPa / 1.6 MPa	Standard municipal water pressure
Protection Level	IP68	Submersible continuous operation
Communication	Pulse / 4-20mA / RS485 / IOT	Remote monitoring and data logging
